Enthusiast of “the internet of things” imagine a world in
which all or our devices seamlessly communicate with one another, anticipating
our wants and needs, and satisfying them with little need for direct commands
from us. The reality is not quite there
yet.
I didn’t set out to make our house a “smart home” filled with
a bunch of devices communicating with each other. One device at a time, I find myself sliding
in that direction. Some of my devices
communicate with one another, although often not so seamlessly. Sometimes they do what I want without an
explicit command. I am enjoying playing
with the technology. However, I couldn’t
point to enough convenience to justify the effort and expense if I wasn’t
enjoying the process.
Let there be controllable light
My first step into home automation came when I was tasked
with procuring light bulbs for all of the light fixtures in the house. I knew we wanted LEDs in most fixtures. Like most other seemingly simple choices, I
decided to complicate it by reading about the differences between various light
bulbs. It turns out that LEDs are not
only available in different intensities, but also in different light
temperatures. Some light temperatures
provide more soothing ambient light while others are more suitable for task
lighting. Then I read about
Hue light bulbs. These come in three types:
white lights that have adjustable brightness, white ambiance lights that have
adjustable brightness and temperature, and color lights that have adjustable
brightness, temperature, and even color.
I bought these for many of the fixtures.
I also bought the Hue Hub. The
hub communicates with the bulbs through a radio protocol called Zigbee. The hub also communicates with cell phones
via wifi or the Internet.
|
This is a Hue Dimmer Switch. It comes with a wall plate that makes it more or less blend in with Decora wall switches. However, we prefer just setting it on a countertop. The On button cycles through pre-defined scenes. The middle buttons brighten or dim the lights. The Off button, not surprisingly, turns the lights off. |
One feature I like is using the lamp on the night stand to wake me up. The lights come on, at a low intensity, at a programmed time. Then, they gradually increase in intensity. I find it a much more pleasant way to wake up than a buzzing alarm clock.
After setting this all up, we discovered that the lights go
back to a default each time they are turned off and then on again at the wall
switch. If the default was not what we
wanted, we had to get a phone out and adjust it via the Hue app. Nobody wants to go through that each time
they want to turn a light on. In order
to take advantage of the Hue features, you need to leave the wall switch on and
control the lights via Hue. For some
areas of the house, we invested in switches from Hue. For other areas of the house, we ended up just
not taking advantage of the light bulb features. The light bulbs are grouped into rooms and
each switch is associated with a room.
For each room, there are a few predefined scenes with different light
temperatures and intensities, such as “Relax”, “Read”, and “Concentrate.” Defining additional scenes is straight
forward. When you push the On button of
the Hue switch, it comes on at the last selected scene. Pressing the On button additional times
cycles through other scenes.
|
This is a Hue Tap Switch. It costs twice as much as the Hue Dimmer Switch and is actually less capable. Pressing the single dot turns the lights off. Pressing any of the three buttons selects a scene. |
My wife
ordered an
Amazon Echo for the family room/kitchen area. Her
motivation was the ability to stream music.
I discovered that, with a little setup, the Echo provides an alternate
way to control the lights. For example,
if I say “Alexa, turn kitchen lights off,” the lights turn off.
The universe of possibilities
Many devices are now designed to be controlled via the
internet using a cell phone app.
However, the cell phone app that is specific to the device isn’t the
only one that can control it. A web
service called
IFTTT (IF This Then That) allows
you to control devices based on information from other devices and from outside
services. IFTTT has partnered with many
manufacturers so that devices can accept commands to do things from the IFTTT
service and can send signals to the IFTTT service to trigger actions. This allows you to have one device trigger
another device to do something. For
example, your garage door being opened can trigger your thermostat to go from away mode to home mode. There are also a
bunch of potential triggers from sources other than your devices, such as The
Weather Channel and ESPN. The
possibilities are vast. The useful possibilities
are much less vast. My first experiment
with IFTTT was to make some of my Hue light bulbs turn to red whenever a
Detroit Red Wings game started. I made
it work. After it happened a few times,
I turned it off because it was annoying.
In search of utility
I decided I was approaching this wrong. Instead of going through the millions of ways
I could automate things looking for something that would be useful, maybe I
should start with something I actually wanted to automate. I wanted the porch lights to come on near sunset
and go off near sunrise. If our porch
lights took Hue bulbs, that would be pretty straight forward to
accomplish. But they don’t take bulbs,
they have the LEDs built into the fixture.
They are controlled by three-way wall switches, one near the front door
and one near the door to the garage.
|

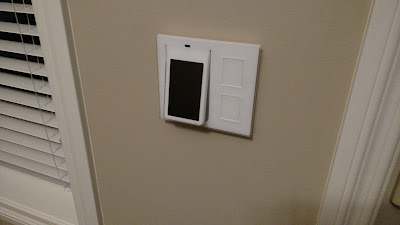

This is our Wink Relay. The little screen lets you do the things you would normally do through the Wink App without getting out your phone. It is installed in place of a single or double wall switch. At least one of the two buttons controls whatever was previously controlled by the wall switch. It is also capable of doing some of what a Wink Hub does, although that is pretty limited. |
As I said at the beginning of this post, I didn’t set out to
create a “smart home.” By this time,
however, I was interested in this home automation stuff. I found some replacement switches with built
in timers that would probably have been the simplest solution. That is not what I did. Unable to find replacement switches that
interact directly with IFTTT, I decided to obtain a home automation hub and
switches that would communicate with the hub.
The fact that the existing switches were 3-way switches limited my
choices. I decided to go with
switches from GE that support 3-way switches. For a home
automation hub, I decided to go with a
Wink Relay. The Wink system supports two different radio
protocols that are common for home automation: Zigbee and Z-wave. The GE switches are available for either protocol. Since I already had a bunch of Zigbee
devices, I selected the Zigbee version.
The Wink Relay replaces one or two wall switches. There are a number of limitations,
though. It cannot go where you have a
gang of three switches. It also cannot
replace any 3-way switches. The best
place I could find was the switch in the master bedroom controlling the light
on the balcony. I installed the Relay
and the GE switches and tried to get everything to communicate.
It turns out I had a few misconceptions. The Wink Relay could not do what I
wanted. I needed a Wink Hub. Wink had recently released a
new hub product, so I ordered one of those. Next, I
learned that, although Wink supports both the Zigbee and Z-wave protocols, it
only supports the Z-wave version of the GE switches. So I ordered one of those and replaced the
Zigbee version.
Now, at sunset, IFTTT sends a message to Wink, which then
sends a message to my GE switch, which turns the porch light on. We used to ask “how many people does it take
to change a light bulb?” In home
automation, we should ask “how many products and services does it take to turn
on a light?”
Goodnight
The Wink Relay has two buttons. If you use it to replace a single wall
switch, one of the buttons can be used for something else. Since the Hue switch for the nightstand lamps
always seems to be on my wife’s side of the bed, I decided to use it to turn
off the nightstand lamps. When you turn
off a Hue light using Wink, it takes at least a few seconds to happen and
sometimes MUCH longer. People used to
joke about being so tired that they could turn off the light switch and be
asleep before it got dark. In my house,
that is literally a realistic possibility.
The Foobot and the Furnace
What other things might be useful to automate? I have an air quality monitor called a
foobot. Among other things, it detects the level of
particulates in the air. If the level of
particulates gets higher than desired, one suitable response is to turn the
furnace fan on so the MERV 13 filter can remove particulates. Could that be automated?
There is a foobot interface for IFTTT, but not for
Wink. My thermostat is an
Emerson Sensi which has an interface with Wink but doesn’t have one with IFTTT. (Wink, IFTTT, and all of the other players in
this field are continuously adding new interfaces, so this information may
rapidly become obsolete.) However, there
is a Wink interface to IFTTT. So, having
already installed the Wink hub for the porch light issue, I didn’t have to buy
anything new. A little
programming set it up. When the
particulate level exceeds a threshold, foobot sends a signal to IFTTT which sends
a signal to Wink which sends a signal to the thermostat to turn the fan on. When the particulate level drops below a
lower threshold, foobot sends a signal to IFTTT which sends a signal to Wink
which sends a signal to the thermostat to set the fan back to Auto.
One flaw in this setup is that Wink cannot just change the
fan setting. Instead, it also sets the
heating/cooling mode and temperature setpoint.
So, these other parameters get hard-coded into the automation. If we decide to change the setpoint on the
thermostat for some other reason, then Wink will set it back to the hard-coded
value whenever the rule runs. I sent a
question about this to Wink technical support.
The response was that Wink programmers envisioned people doing all of
their thermostat control via Wink. I don’t
want to go that far. If this technology
takes off, there will be battles over which products gets to be in control of what.
Excuse me – your door is open
|
The main part of the door sensor mounts on the door frame. A little magnet mounts on the door. The sensor senses proximity of the magnet (except when it doesn't for some reason). |
The next challenge involved our doors. Several times since we have lived in the
house, we have found that exterior doors have been accidentally left open. (The real solution turns out to be door knobs
that the dog cannot open, but that is a different story.) Could we use this technology to get a
notification when that happens so that we can go close the door? Toward this end, I purchased a
GoControl Home Security Suite that came with three door sensors. I
installed one on each of our exterior doors.
Then I set it up to send me a notification if the door stays open for
more than 5 minutes. I tested it. It worked.
However, since then, I have gotten about ten false alarms for every time
that the door has actually been left open.
Maybe I will eventually discover a way to make it reliable enough to be
useful. In the meantime, this
application is a failure.
The security kit also included a motion detector and a siren. To my wife’s relief, I haven’t hooked up the
siren. I have attempted to use the
motion detector to control the kitchen lights.
The lights are programmed to go on when there is motion in the
kitchen. That works most of the time,
but with enough delay that you are usually reaching for the switch by the time
the lights come on. The lights are
programmed to go off when there has been no motion for 20 minutes. That works sometimes.
What else can we automate?
There are a lot of other devices that we could add to our
home automation system. Many of our
appliances can be connected to the internet and to IFTTT or Wink. We could replace our door locks with smart
locks that use Bluetooth signals to unlock when an authorized person approaches. At the moment, we have no plans to add any
additional devices until we have some clear idea of what useful functionality
it will provide.
Lessons
Before you choose a home automation hub such as Wink or
SmartThings, look for explicit statements that the devices
you have are supported. Similarly, after
you have chosen a hub, look for explicit statement that any new device you are considering is
supported before you buy it.
Don’t count on home automation for anything mission critical.
If you are building new and plan to use Hue or some other
type of smart light bulbs, minimize the number of wall switches. Don’t use 3-way switches. Whenever possible, use a single switch to
control a bunch of lights. Plan on
controlling the lights through switches that work with the automation.
Plan on having lots of hubs.
In the closet where my home automation stuff resides, I have a Wink hub,
a Hue hub, a hub for the garage door opener, and a hub for my weather station
(which doesn't yet interface with either IFTTT or Wink).
That is in addition to the cable modem, the wifi router, and a backup
drive.
One unintended consequence of my experiments in home
automation is that I have much more information about what occupants of the
house do. I have a record of what time
various doors were opened and closed. I
have a record of when people walked through the kitchen. If I chose to look, I could tell what time
people turn out their lights at night. The
foobot’s air quality readings sometimes
indicate activities that are outside our norms.
I have no desire to spy on my family and they trust me not to use the
data against them. For some families, this level of data gathering may cause issues.
